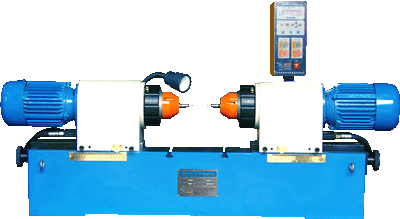

Double Head Radial Riveting Machine-JM9D
Hydraulic Horizontal Radial Riveting Machine
|
Model：JM9D |
| ■Double head design with horizontal style | |
| ■Max. riveting diameter 9mm(solid steel rivet) | |
| ■Hydraulic driven, Stepless pressure regulation | |
| ■Safty cover at rotating part for protection | |
| ■Riveting speed stepless adjustable | |
| ■Micro-adjusting index with locker | |
| ■Widen workbench,powerhead move horizontally | |
| ■Adjustable riveting time, Model slection: Auto/Manual | |
JM9D |
Scope of application: the instrument appearance, daily hardware and electrical equipment, etc. |
|
The dimesion may customize as your requirement. |
JM9D is a Double Head Radial Riveting Machine which is new generation multi-point riveting machine. The maximum diameter of riveting is 9mm. It adopted the latest technology 11 disc plum radial structure. Users can adjust the riveting stoke length, riveting pressure, feeding rate, and also hydraulic system pressure to ensure perfect riveting performance. The Hydraulic station can be embedded inside the cabinet below workbench to fully save working space. Hydraulic oil tank is enlarged to reduce the temperature rising and improve the reliability. It is horizontal style equipped with reasonable workbench designation. The best quality of all units on this machine ensure the smooth surface of workpiece and stability of processing. |
|
 |
|
| Parameters of JM9D | |
| Range of workpiece diameter Φ1-Φ9 | |
| Max. riveting pressure 14KN | |
| Max. delivery pressure of oil pump 2.5MPa | |
| Max. working stroke 30×2MM | |
| Max. seperation distance 280MM | |
| Max. distance (powerhead movment) 100×2MM | |
| Max. height (powerhead to guide rail) 160MM | |
| Extend length of rivets 50MM | |
| Workbench size 1055MM×200MM | |
| Power 2.6Kw | |
| Direction of oil pump rotation Clockwise | |
| Dimension 1700MM×200MM×300MM | |
| Net weight 350Kg | |
|
|
Video---Double Head Radial Riveting Machine
In order to guarantee the stability and quality of riveting, the two heads of Double Head Radial Riveting Machine must be manufactured at the same time to ensure the same specifications including the internal resistance, feeding rate, riveting pressure,dimension, etc. The requirements of the manufacturing precision are very high. Here we see the actual use process of riveting machine.
High definition Video,Please click Video---Double Head Radial Riveting MachineVideo---Double Head Radial Riveting Machine for processing engine crank pin
This video will show you how to process engine crank pin by Double Head Radial Riveting Machine
High definition Video,Please click Video---Double Head Radial Riveting Machine for processing engine crank pin
| Optional units for upgrade | |||
 |
 |
 |
 |
| Micro adjusting index | Automatic lubricator | Integration control panel | PLC pressure monitor |
