PRODUCT

Rivetless Riveting Machine

Rivetless Riveting Machine(known as TOX riveting machine or Tog-L-Loc riveting machine), it is divided by different types of driven power,including Spin Rivetless Riveting Machine, Hydraulic Boosting Rivetless Riveting Machine, Air-hydraulic Boosting Rivetless Riveting Machine.

Our company is the earliest manufacturer of rivetless riveting machine in China. We has won the national patent, with independent property rights. Rivetless riveting machine can be widely used in fastening metal sheet for car manufacturing, light industry, precision machinery,electronics appliances, hardware.

Scope of applications: Car manufacturing includes skylight, bumper, exhaust pipe, brake cover, door, instrumentation framework, engine mounts and cover, cooler, seat, shake window machine, muffler. As well refrigerator door, washing machine shell, fans shell, dentist machine shell etc.

We will introduce three types of rivetless riveting machine on this page:CNC Rivetless Riveting Machine, Hanging Rivetless Riveting Machine, Desktop/Vertical Air-hydraulic Boosting Rivetless Riveting Machine。

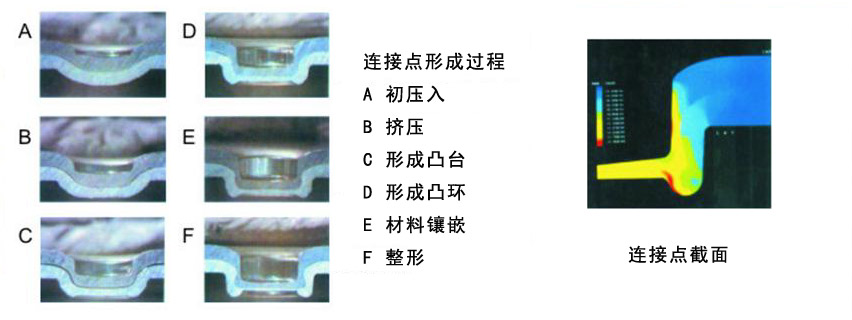

無鉚釘連接過程圖

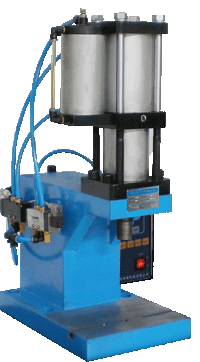

Desktop Air-hydraulic Boosting Rivetless Riveting Machine

WMTZ-5

WMTZ-15

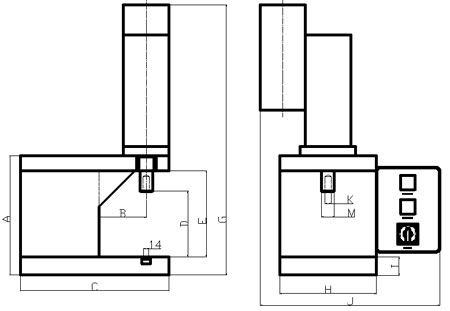

Model	Max. Press	A	B	C	D	E	G	H	I	J	K	M
Unit	（T）	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
WMTZ－5	5	396	157	492	218	286	850	320	60	560	Φ20	M42
WMTZ－8	8	396	157	492	218	286	860	320	60	565	Φ20	M42
WMTZ-10	10	396	157	492	218	286	870	320	60	580	Φ20	M42
WMTZ-15	15	396	157	492	218	286	896	320	60	595	Φ20	M42

This type of machine can be customized as yours parameters.

Model		WMTZ-5	WMTZ-8	WMTZ-10	WMTZ-15
Type		Desktop	Desktop	Desktop	Desktop
Punch Force (Ton)		5	8	10	15
Stroke（mm)		75	75	75	75
Power stroke(mm)		5	5	5	5
Riveting rate(pcs/min)		14～25	14～25	14～25	14～25
Max. Thickness(mm)	Gal. Steel	2	3	4	5
Max. Thickness(mm)	Aluminum	3	4	5	6
Air Supply		5-6kgf/cm2
Rated flow(m3/min)		0.04	0.04	0.05	0.06
Positioning hole		Yes	Yes	Yes	Yes
Control system		Yes	Yes	Yes	Yes
Pressure Adjustment		Stepless	Stepless	Stepless	Stepless
Atomizing lubrication		Yes	Yes	Yes	Yes
Air filter		Yes	Yes	Yes	Yes
Electric Power(W)		50	60	65	70
Weight(kg)		105	112	120	135

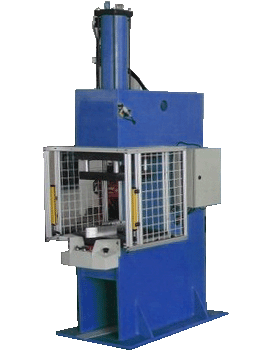

Vertical Air-hydraulic Boosting Rivetless Riveting Machine

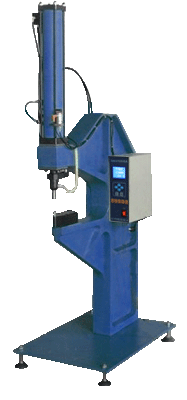

WMZ-15 Deep-Throat Rivetless Riveting Machine

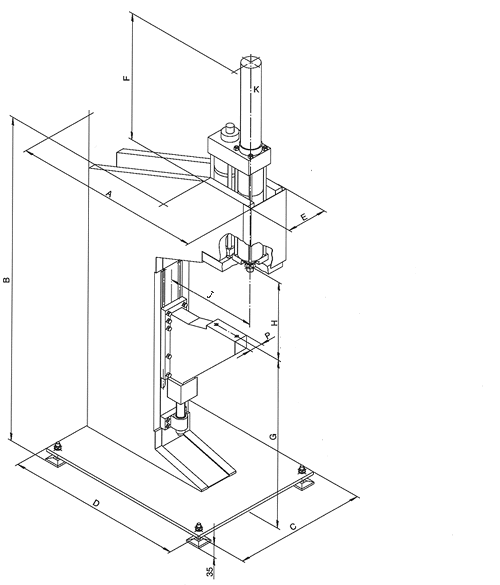

Model	Max.press	A	B	C	D	E	F	G	H	J	P
Unit	（Ton）	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
WMZ－5	5	985	700	380	550	160	200	350	250	200	35
WMZ－8	8	985	700	380	650	200	200	350	250	200	45
WMZ-10	10	1450	1200	450	800	300	400	780	320	250	60
WMZ-15	15	1550	1300	550	950	400	400	780	320	300	70

This type of machine can be customized as yours parameters.

Model		WMZ-5	WMZ-8	WMZ-10	WMZ-15
Type		Vertical	Vertical	Vertical	Vertical
Punch Force (Ton)		5	8	10	15
Stroke（mm)		75	75	75	75
Power Stroke(mm)		5	5	5	5
Riveting rate(pcs/min)		14～25	14～25	14～25	14～25
Max. Thickness(mm)	Gal. Steel	2	3	4	5
Max. Thickness(mm)	Aluminum	3	4	5	6
Air Supply		5-6kgf/cm2
Rated flow(m³/min)		0.04	0.04	0.05	0.06
Positioning hole		Yes	Yes	Yes	Yes
Control system		Yes	Yes	Yes	Yes
Pressure Adjustment		Stepless	Stepless	Stepless	Stepless
Atomizing lubrication		Yes	Yes	Yes	Yes
Air filter		Yes	Yes	Yes	Yes
Electric Power(W)		50	60	65	70
Weight(kg)		215	240	280	325

Video---Rivetless Riveting Machine equipped with Laser Sight Device

Rivetless riveting is a process known as clinching which cold-forms the part metal using a special punch and die to form a strong interlocking clinch joint. No external fasteners, or welding is utilized in the process. Due to electric cabinet is square parts, it is inconvenient to use clamping method for positioning , we got a solutions that equipped with laser sight device for more accurate positioning.

High definition Video,Please click Video---Rivetless Riveting Machine equipped with Laser Sight Device

Video---Rivetless Riveting Machine for Fastening Car seat torsion bar

Car seat torsion bar has more than 6 points of riveting, its processing is a classic case.

High definition Video,Please click Video---Rivetless Riveting Machine for Fastening Car seat torsion bar

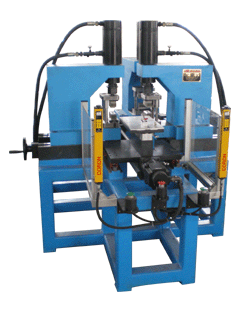

Air-hydraulic Boosting Rivetless Riveting Machine

Air-hydraulic Boosting Rivetless Riveting Machine adopts the air booster cylinder to performing riveting joint process, equipped with XYZ three spindle positioning control system. The maximum riveting thickness is 8mm.

The obvious advantages of pneumatic boosting rivetless riveting machine includes stability processing, performing smooth surface and various adjustable functions. Users can adjust the riveting stoke length, riveting pressure, feeding rate, and also hydraulic system pressure to ensure perfect riveting performance. It is suitable for processing several rivets points on one workpiece that automatic complete processing this workpiece at once without adjust and position it again, also it will keep high precision. Air-hydraulic Boosting Rivetless Riveting Machine can use to process special purpose or large scale riveting job that other common riveting machine can not get it.

Main features of Pneumatic Boosting Rivetless Riveting Machine

■Apply the latest rivetless technology

■Programmable control for convenient and reliable operating

■XYZ three direction positioning system for accurate control

■Maximum moving distance of X spindle is 3 meters( see the picture)

■SIEMENS PLC system

■Seperated electrical control box

■Workpieces automatic positioning and holding

■Automatic feeding

■Single rivet point or multi rivet points(Double rivet points see the picture)

■Single head or Multi-head design(Dual head see th e picture)

■Fully functional pneumatic station

■Auto, Manuel and Semi-Auto selection



Specific parameters provided by the users, we design and manufacture them. We will customize as your requirement.

Video---CNC Rivetless Riveting machine for processing bus duct

Bus duct in the straight line direction must have ten of riveting, therefore the best choice is processed by CNC Rivetless Riveting Machine. This machine can complete 4 points at once and perform automatic turn out the fastened bus duct. It will increase 50% efficiency than that of traditional bolting method.

High definition Video,Please click Video---CNC Rivetless Riveting machine for processing bus duct

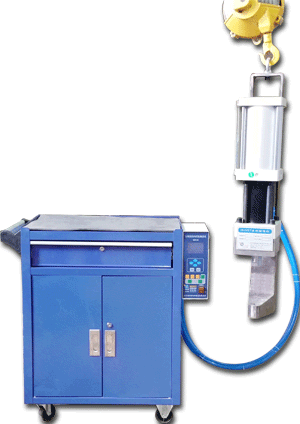

Hanging Rivetless Riveting Machine

Hanging Rivetless Riveting Machine has a smaller hydraulic power unit which can connect to the various size C-guns. The advantages are lightweight, portable and easy to operating and maintenance.

Hanging Rivetless Riveting Machine can be applied to joint ventilation duck, flanges, ladder hinge etc.      XWMZ-8

Main features of Hanging Rivetless Riveting Machine

■Hanging type

■Hand holding type available as well

■Fasten thickness less than 3 mm metal sheet

■Portable，easy to control, low noise

■Stepless pressure adjustment with pressure display

■Reserved two sets of interface,for configuring two rivet pliers, carry out the double differential riveting.

■Combined with different sizes of rivet clamps and cylinders for more functions.

■For any orientation of riveting

■Short circuit protection and security protection of the electric system.

■Non- oil leakage, long no trouble period.

■The specifications of two rivet clamps driven by one host is optional for upgrading.。



Model
XMZ-5 XMZ-8 XMZ-10 XMZ-15

Type Hanging Hanging Hanging Hanging

Punch Force (Ton)
5 8 10 15

Stroke（mm) 75 75 75 75

Power stroke(mm) 5 5 5 5

Two driven in one Available Available Available Available

Riveting rate(pcs/min)
14～25 14～25 14～25 14～25

Max. Thickness(mm)

Gal. Steel
2 3 4 5

Aluminum
3 4 5 6

Air Supply 5-6kgf/cm2

Rated flow(m³/min)
0.04 0.04 0.05 0.06

Blancer Spring balancer Spring balancer Spring balancer Spring balancer

Portable control system Yes Yes Yes Yes

Pressure Adjustment Stepless Stepless Stepless Stepless

Atomizing lubrication Yes Yes Yes Yes

Air filter Yes Yes Yes Yes

Auxiliary grip Twist grip Twist grip Twist grip Twist grip

Electric Power(W)
50 60 65 70

Clamp Weight(kg) Seven specification is optional----12-80kg

Clamp Size Seven specification is optional----see size figure

Control cabinet Weight(kg)
25 25 25 25

Control cabinet dimension(mm)

400*580 *820 400*580 *820 400*580 *820 400*580 *820

Reserved two sets of interface,for configuring two rivet pliers, to carry out the double differential riveting.

Video---Hanging Rivetless Riveting Machine for Processing Air Conditioner Ventilation Valve

Stepless pressure adjustment with pressure display, pressure maintaining time adjustable, LCD touch screen, PLC control, riveting head replacement, Auto, Manuel and Semi-Auto selection

High definition Video,Please click Video---Hanging Rivetless Riveting Machine for Processing Air Conditioner Ventilation Valve
